Description

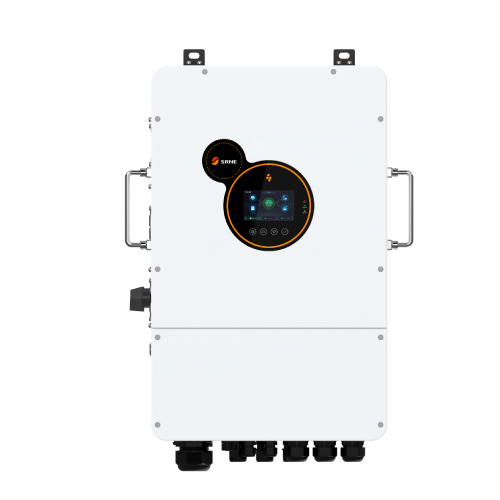

HESP 8 to 12kW
Three-Phase Low Voltage Hybrid Inverter with dual MPPT tracking, 48V battery storage, and pure sine wave output for high-demand residential and commercial systems.
Three-Phase Hybrid Inverter with Storage
Compatible with 48V lithium battery systems. Features exclusive dual-activation BMS communication for improved monitoring accuracy, system stability, and battery protection.
Supports three-phase pure sine wave output with separate generator port and time-slot function for peak-valley electricity management. IP65 waterproof for outdoor installation.
Model Range
Key Features
2× Peak Output Capability
Handles short-term startup loads with ease. The 12kW model delivers up to 24kVA peak power for demanding motor-driven appliances, pumps, and HVAC systems.
Dual Independent MPPT
Two MPPT channels with 99.9% tracking efficiency. Manage arrays with different orientations across a 120 to 450Vdc operating range.
10ms Grid Transfer
Typical 10ms switching ensures essential loads never notice grid failure. Uninterrupted power for critical commercial systems.
1 to 6 Unit Parallel
Scale from single-phase residential to three-phase commercial output. Connect up to six inverters with intelligent load sharing for systems up to 72kW.
Technical Data
| Model | HESP4880SH3 |
| Rated Output Power | 8,000W |
| Max. Peak Power | 16,000VA |
| Rated Output Voltage | 400Vac / 230Vac |
| Rated AC Frequency | 50 / 60Hz ± 0.3Hz |
| Load Motor Capacity | 5HP |
| Bypass Overload Current | 29A |
| Number of MPPT Trackers | 2 Independent |
| MPPT Voltage Range | 120 to 450Vdc |
| Max. PV Open Circuit Voltage | 500Vdc |
| Max. PV Input Power (per tracker) | 9kW / 9kW |
| Max. PV Input Current (per tracker) | 22Adc / 22Adc |
| Max. Short Circuit Current | 27Adc / 27Adc |
| Rated Battery Voltage | 48Vdc |
| Battery Voltage Range | 40 to 60Vdc |
| Max. Grid Charging Current | 100Adc |
| Max. Generator Charging Current | 100Adc |
| Max. Hybrid Charging Current | 200Adc |
| Max. Discharge Current | 200Adc |
| Parallel Operation | 1 to 6 Units |
| Transfer Time | Typical 10ms |
| Protection Degree | IP65 |
| Max. Efficiency | 97.5% |
| European Efficiency | 97% |
| Dimensions (W×H×D) | 556 × 345 × 182 mm |
| Weight | 28.5 kg |
Additional Capabilities
AC Coupling
Integrate with existing solar installations to add battery storage without replacing current inverter equipment.
Generator Input
Dedicated generator port with up to 100A charging for extended off-grid operation during prolonged low solar periods.
Smart Scheduling
Time-of-use programming reduces electricity costs by charging during off-peak and discharging during peak rates.
